Introduction to 32bit

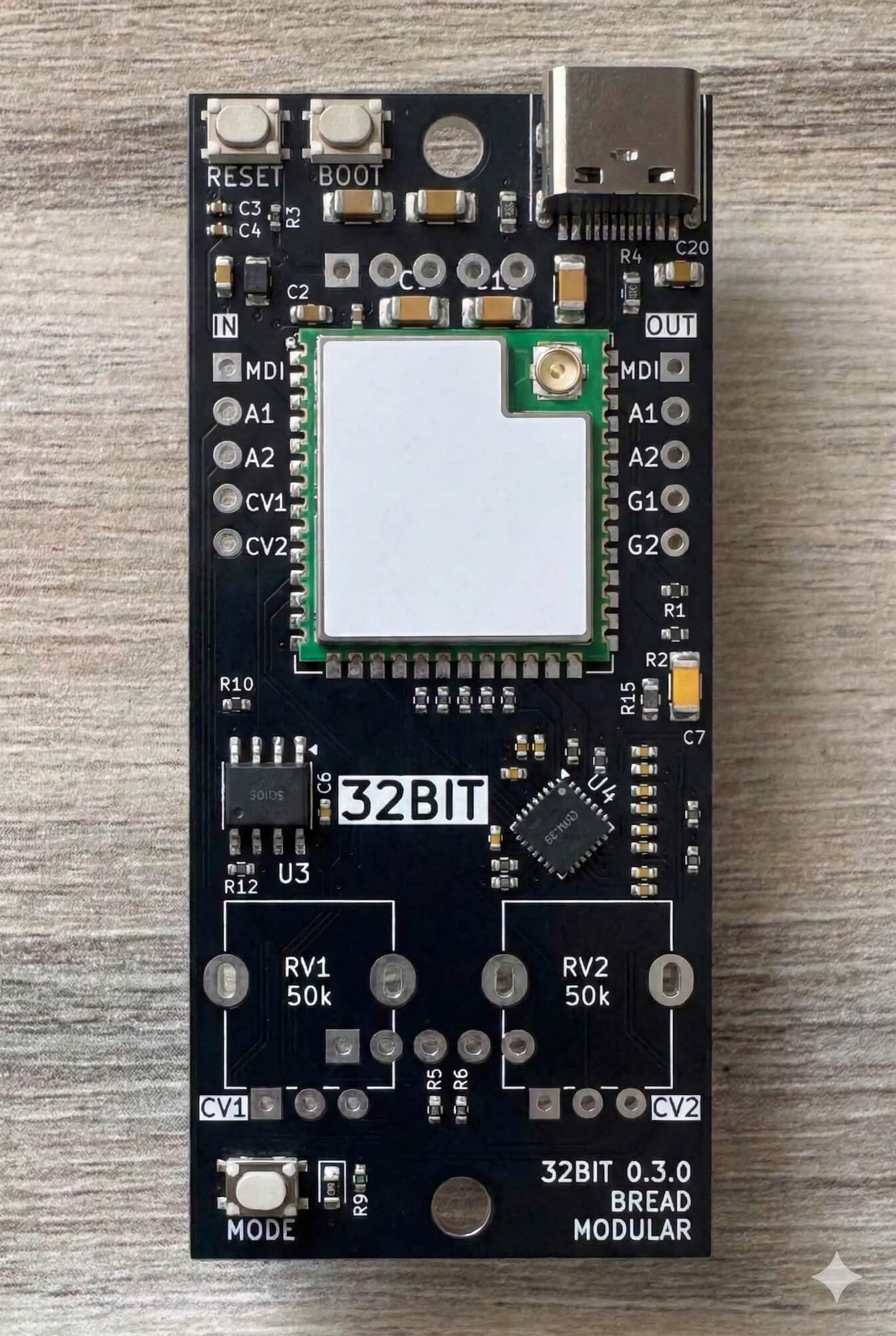

32bit is a realtime audio computer designed for high-quality audio effects processing. It features:
- ESP32-S3 Microcontroller (dual-core)
- Floating-point calculation support (for enhanced DSP capabilities)
- ES8388 Audio Codec with 16-bit audio processing
- 2 x 16-bit Audio Inputs
- 2 x 16-bit Audio Outputs
- MIDI In/Out
- 2 x CV Input with Attenuators
- MODE switch with LED indicator
- USB Serial for PC connectivity and firmware updates
Modular Design
32bit is designed in a modular way where you can customize it with different firmwares. Currently, it supports the FX Rack firmware, which provides effects designed for use with the 4mix's send/return setup.

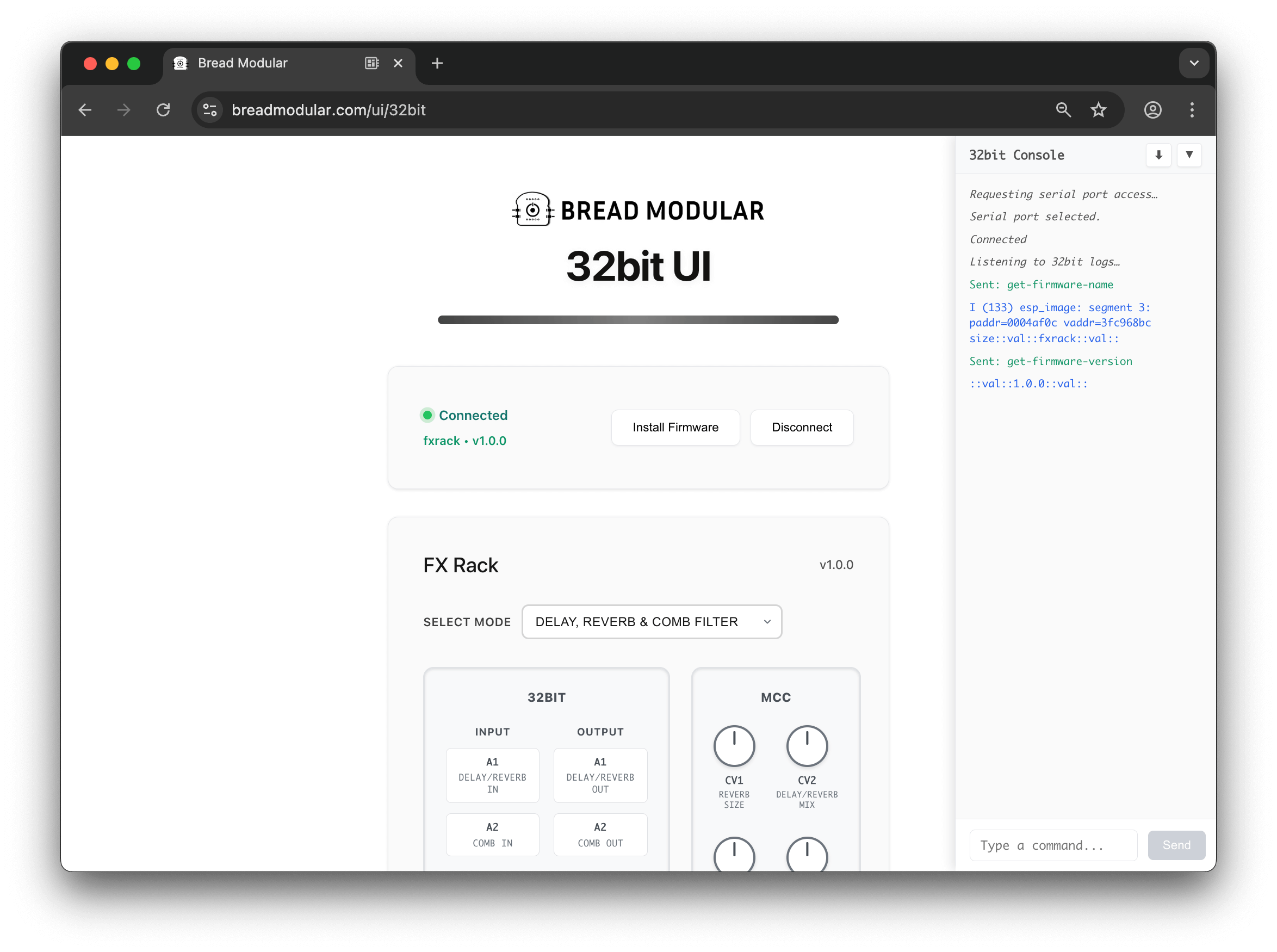

We achieve modularity using our MCC module, which allows you to control effects via MIDI CCs. You can load different firmwares using the 32bit Web UI.
Usage
Using 32bit is very simple. Just plug your module into the Bread Modular base, send audio signals to the inputs, and get processed audio from the outputs.
You may also need to plug it into your computer via the USB-C socket and load a firmware using the 32bit Web UI.
The 32bit features two knobs (CV1 & CV2) for direct control, and you can also control effects using MIDI CCs or our MCC modules.
