The Electronics Lab Kit is a configuration of Bread Modular where you can experiment with Audio Electronics and build things faster. This is the same setup we used to build most of our modules.

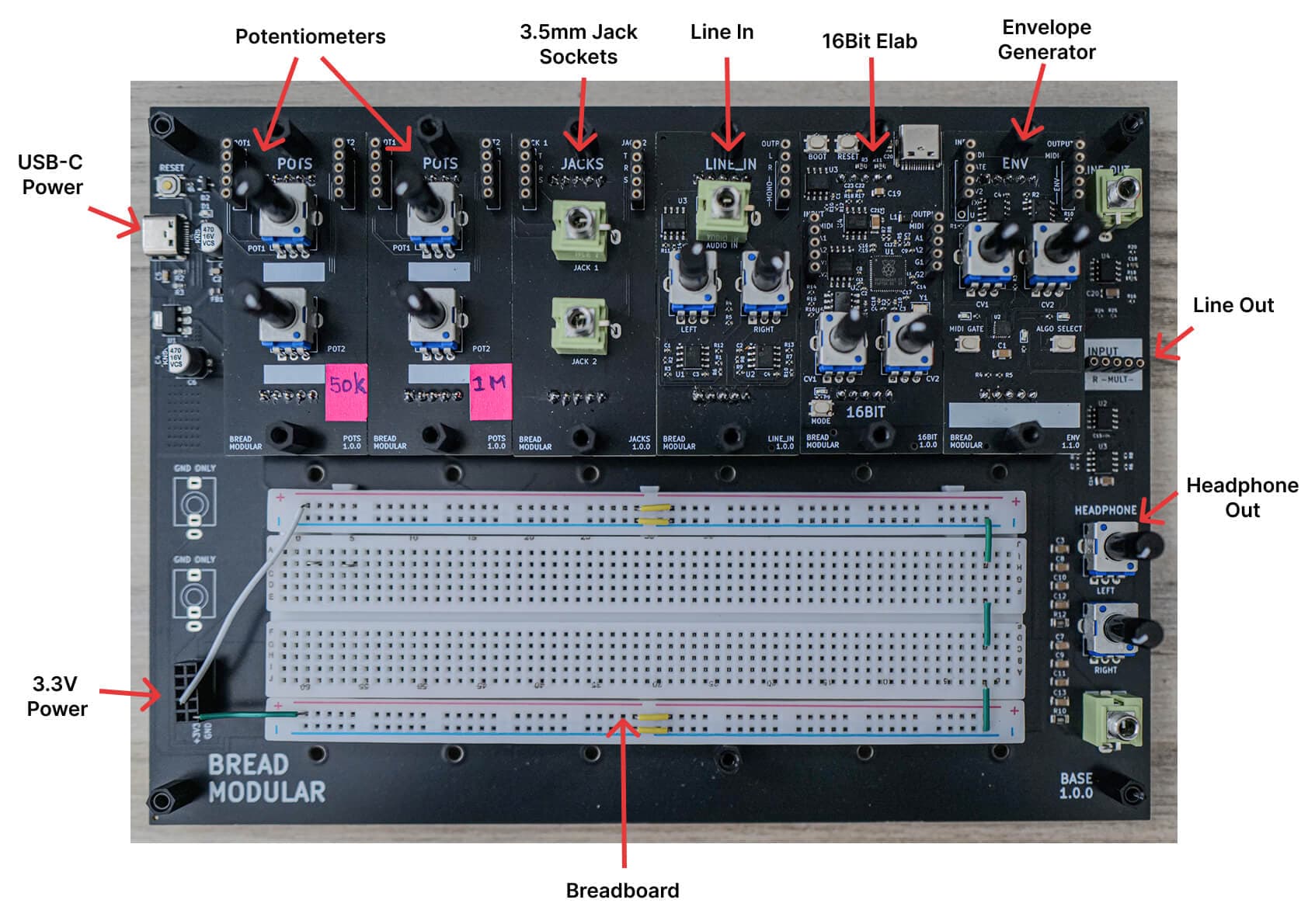

What's Included
- Well-detailed set of tutorials on audio electronics
- USB-C Power
- Line In/Out
- Headphone Out
- Potentiometers
- 3.5mm Jacks
- 16bit Elab (Oscilloscope, Waveform/Pulse Generators)
- Envelope Generator
- An integrated Bread Board
- A bunch of electronic components (Opamps, resistors, caps, etc)
Using this setup, you can re-create all the analog modules in Bread Modular.
16bit ELab
This is an adaptation of our 16bit module as a modern electronic bench tool. You can connect it to your computer using USB-C and now you have a very powerful web-based oscilloscope:
This is a web-based tool and no additional software is needed. Also, we don't send any data to the internet; everything works locally.
It also features:
- Dual waveform generator (saw, super-saw)
- Pulse Generator
- Button based pulse trigger
Included Electronics Components
We have included a bunch of electronics components which are very useful for building various analog circuits. With these components, you can build all the analog modules in the Bread Modular system (including V2CA, SVF, LOW & Drive).
Here are the included components:
- 8 rail-to-rail opamps (4 MCP6002 chips)
- 4 Vactrols
- Resistors
- Capacitors
- Diodes
- Patch Cables
- Box of Jumpers
Tutorials
We published a hands-on audio electronics course where you can build & learn audio electronics step by step. We teach from the fundamentals but without making you bored.
These tutorials are based on a physical workshop we did in Sri Lanka & participants loved it.
